Description

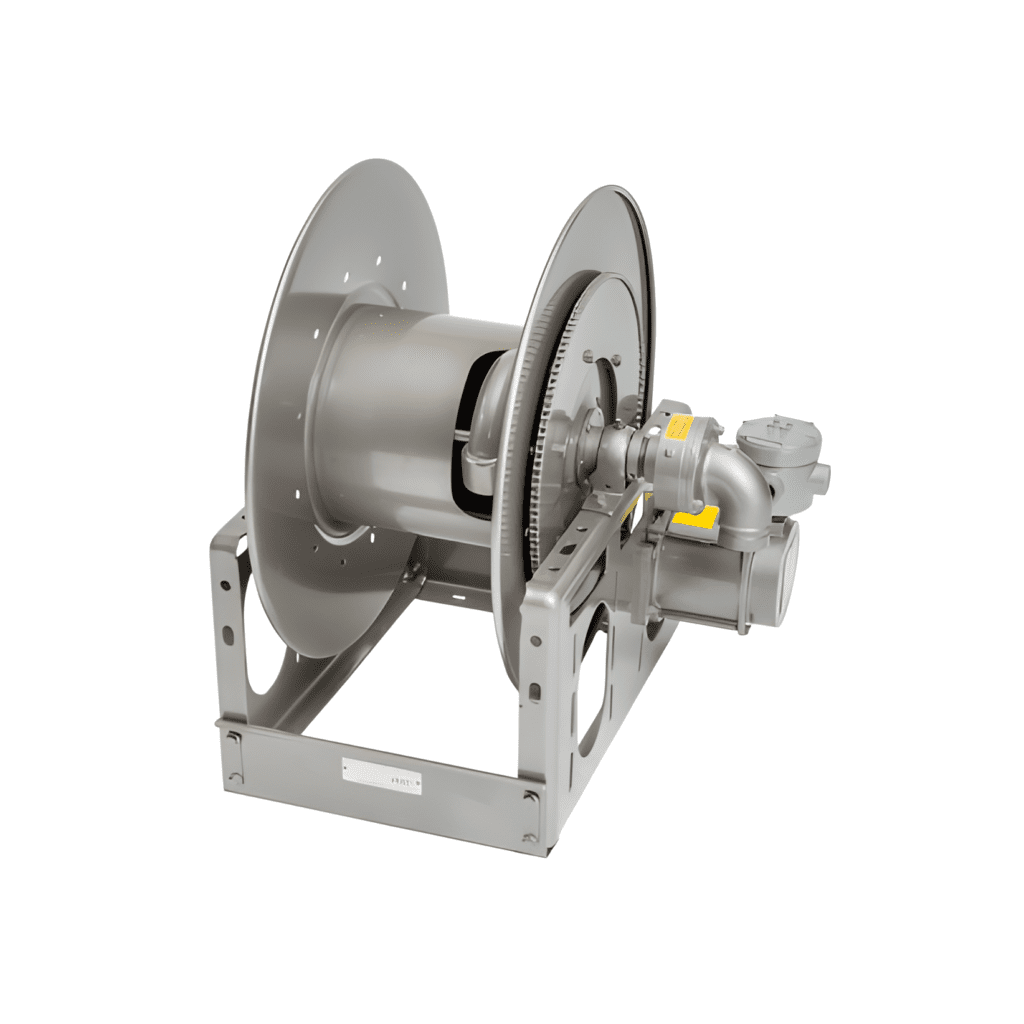

To handle single 1-1/4″ through 1-1/2″ I.D. hose- Gear-driven crank rewind or chain and sprocket drive powered by an electric, hydraulic, or compressed air motor.
- Optional auxiliary crank rewind for power rewind reels.
- Choose EP or EPJ option.
- Comet brake standard on power rewind without auxiliary crank.
- Standard inlet: 90° ball bearing swivel joint with 1-1/2″ female NPT threads and 2″ Victaulic® groove.
- Standard outlet: 1-1/2″ female NPT threads. Other sizes and/or threads can be furnished and must be specified.
- Standard: inlet, outlet riser, and hub assembly are steel. Options: also available in aluminum or stainless steel.
- Rollers and roller mounting brackets are accessory items. Specify roller position.
- Chain guard is available upon request; must be specified.
- Standard pressures to 600 psi (41 bar).
- Standard fluid temperatures from -40° F to +400 °F (-40° C to +204° C).
- Consult factory for other pressures and temperatures.
